Reading h5 DataFrame for pywr-scenarios

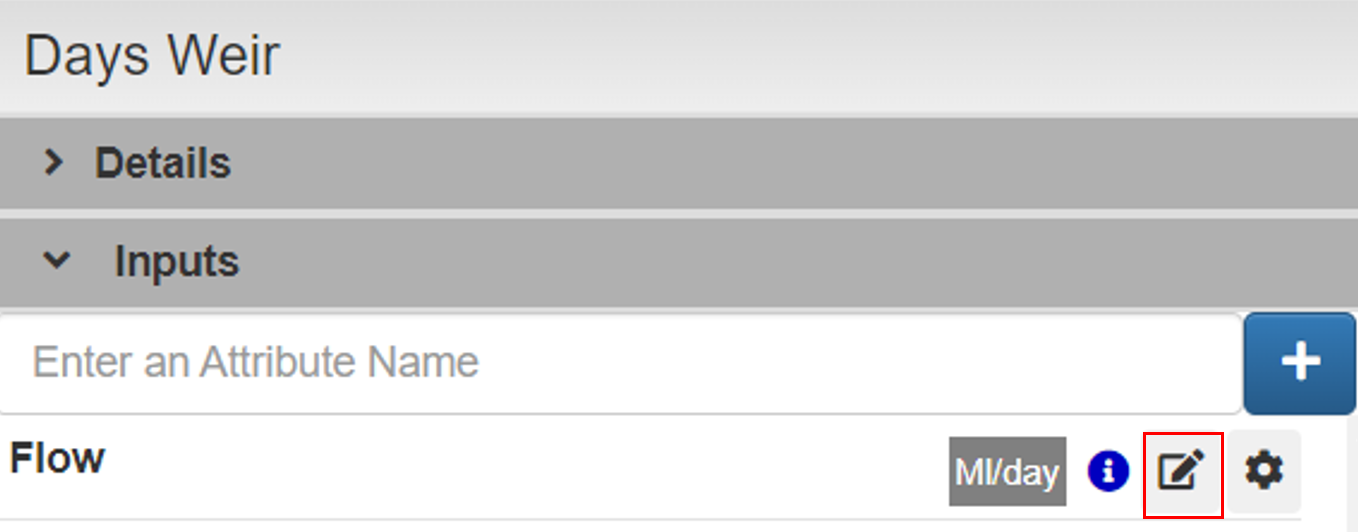

Go to the catchment node Days Weir, click Edit Flow

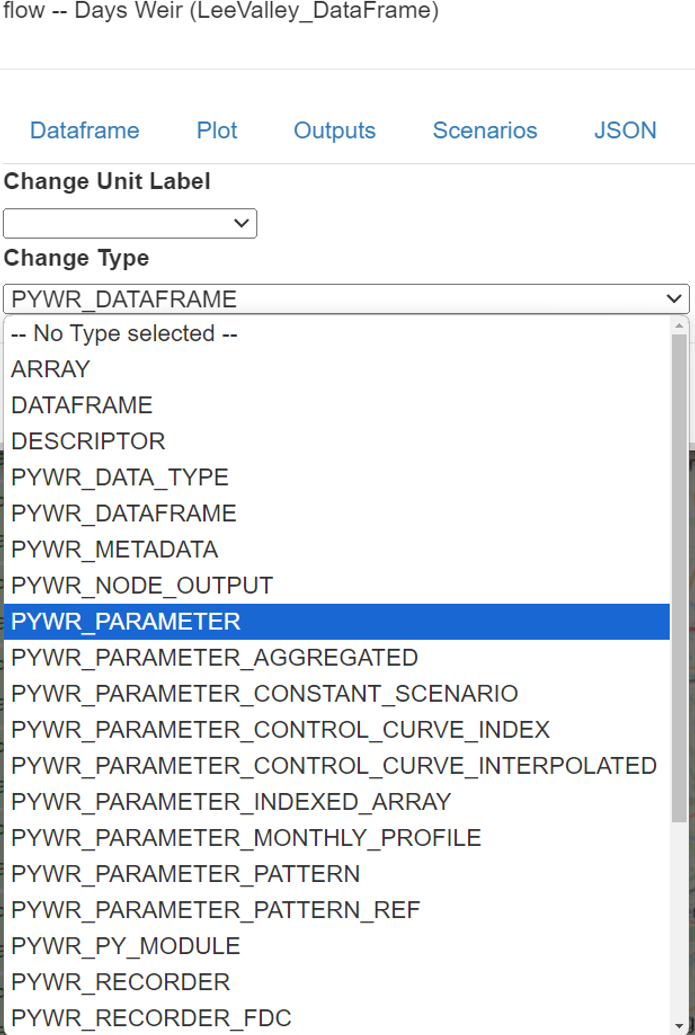

A new window will pop up, select PYWR_PARAMETER and click Save

Paste the following configuration and Save

{
  "key": "Days Weir",
  "scenario": "Climate Change",
  "type": "DataFrameParameter",
  "url": "Thames_inflows_pywrScenarios.h5",
  "index_col": "timestep",
  "parse_dates": true
}

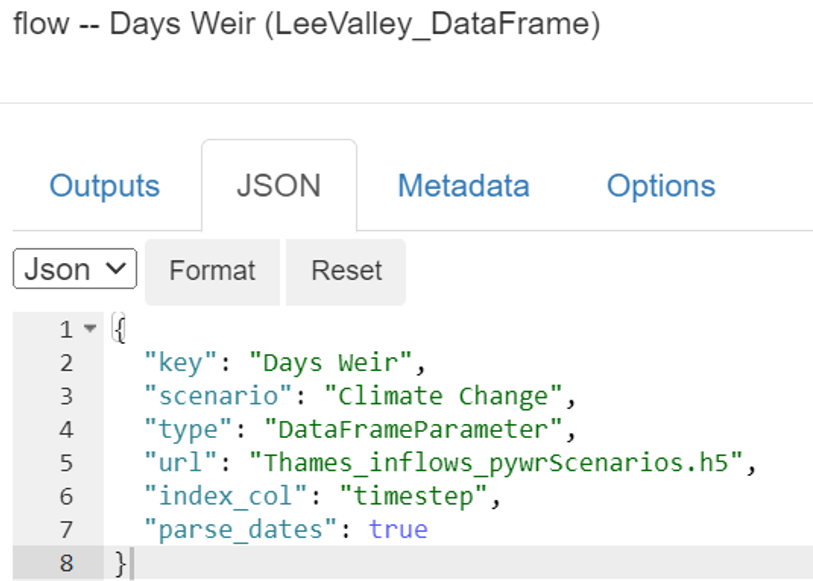

It should look like the following image

Repeat the procedure for catchment Lower_Thames using the following configuration

{
  "key": "Lower Thames",
  "scenario": "Climate Change",
  "type": "DataFrameParameter",
  "url": "Thames_inflows_pywrScenarios.h5",
  "index_col": "timestep",
  "parse_dates": true
}

Results

As the total number of simulations is four, this is because we are using a single pywr-scenarios setup for Climate Change, which contains 4 scenarios. Each of these scenarios will run separately, and the result of all 4 simulations will be displayed each output result, as shown below

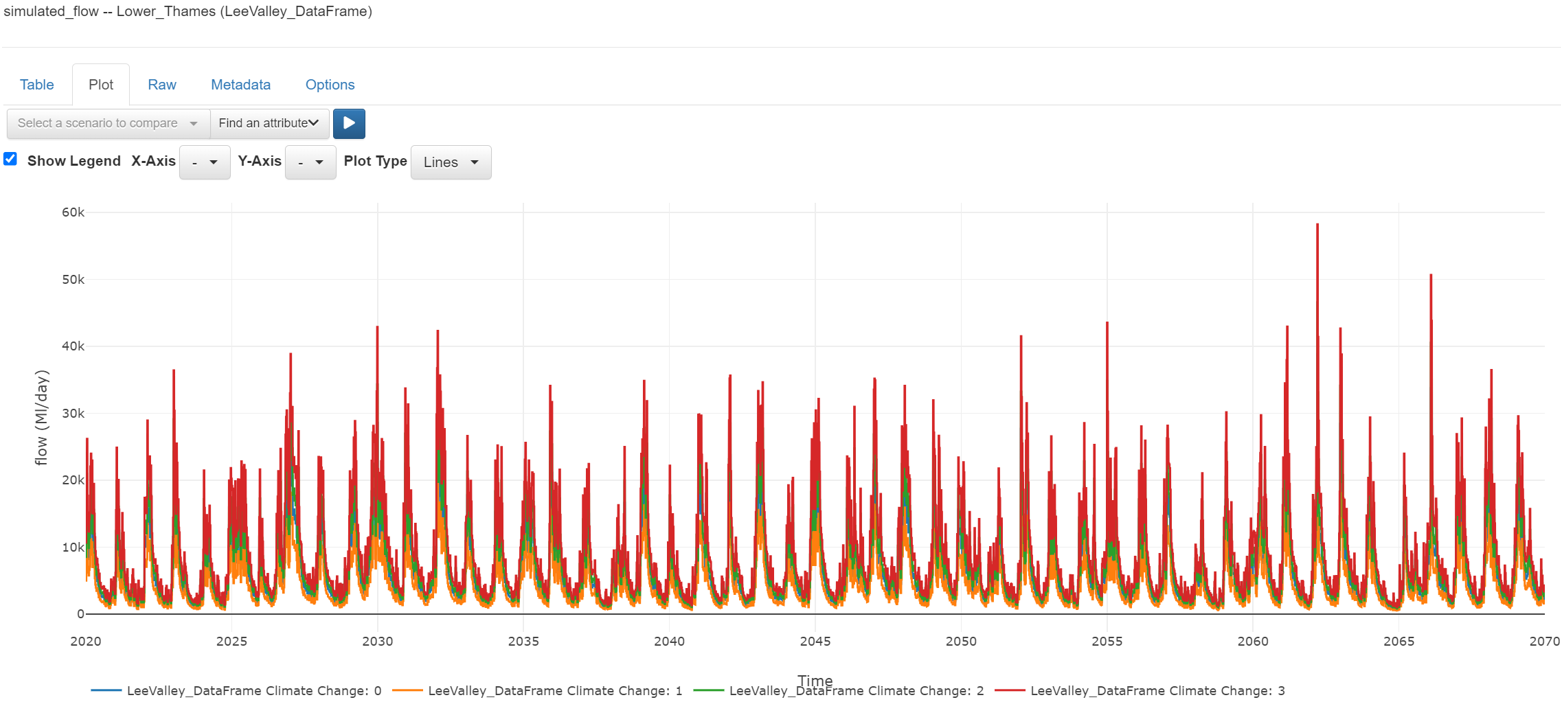

simulated_flow (Lower_Thames)

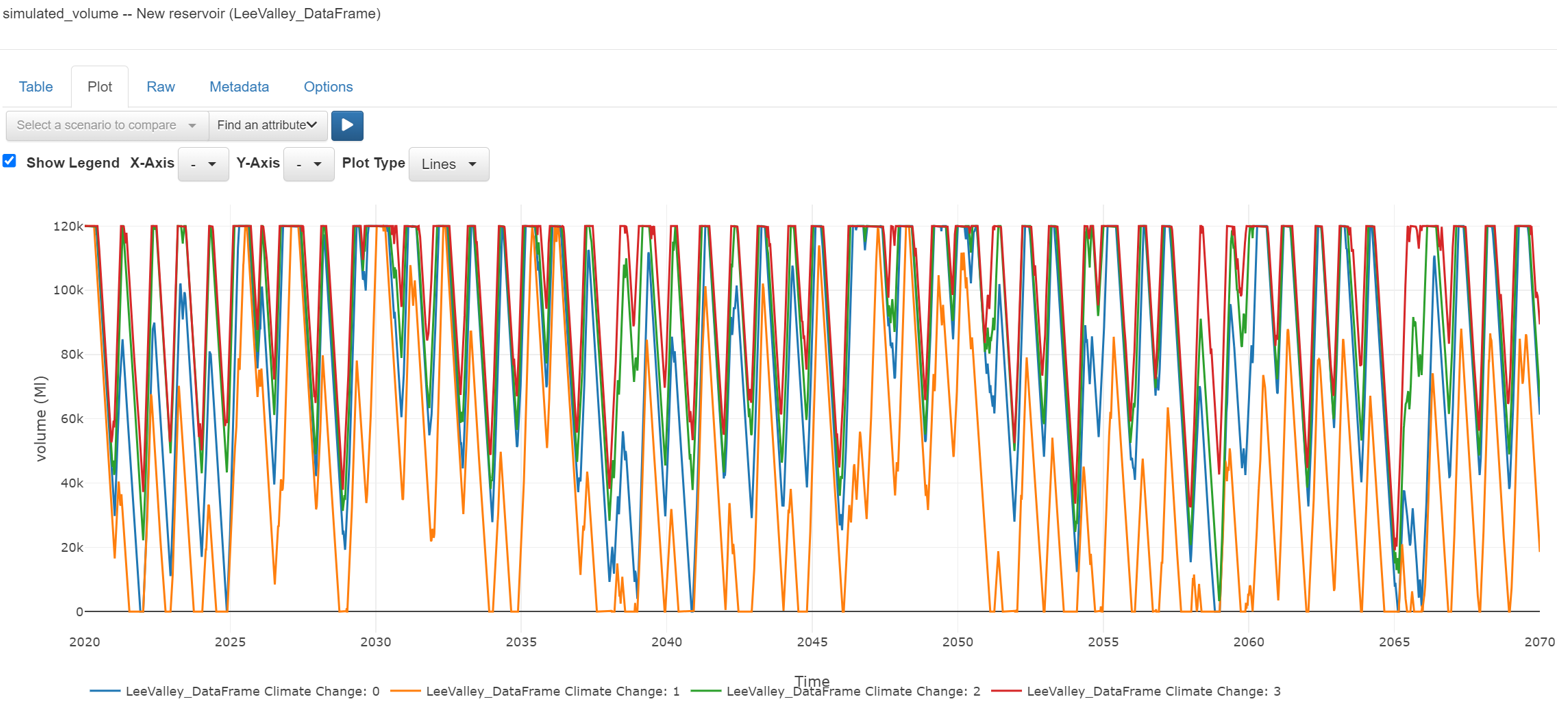

simulated_volume (New Reservoir)
